BMC : The MC-12 (Part III)

To read more a out the MC-12(A) there was an article in the german magazine CHIP :BMC_MC-12-PC-1500_ZeitungDownload article

Here if the translation (may have errors)

Data acquisition with PC-1500

The More frequent use of microcomputers in the workplace of an engineer and the ever increasing amount of data that is necessary to solve a problem, led to the development of measurement and control system MC-12th The battery-operated device, when paired with the computer PC-1500 • and the Printer / Plotter CE-150, a major step towards a more rational and effective work in both the measurement and recording of various technical and physical sizes, as well as on the field of control engineering. The consistent application of modern CMOS: Technology makes the whole system for many hours mains-dependent and allows the use of mobile on site.

1 General data
The basic version of the System MC-12 has five input channels for analog signals, which can be switched by a computer-controlled multiplexer selectively on a measuring amplifier. The subsequent A / D converter with a resolution of 8 bits (corresponding to approximately 0.4%) samples the signal with a minimum cycle time of 30μs. Each input channel can sieve with a private Eingangsmeßverstärker bestükken, whereby the parallel detection of multiple physical sizes next to each other is possible (eg. 8. temperature. Pressure, tension, pH, etc.).
The maximum resolution of the instrumentation amplifier is 20 microvolts, the maximum input voltage 5V. By appropriate input amplifier is voltage up to 600V can be recorded.

The gain of the sense amplifier is set by the computer. This can be done by the user via the keyboard. but also automatically by the test program, with always the cheapest range is selected.
There is a choice between different modes. In direct mode, the measured values ​​on the LCD display (26 characters) or as a measuring beam (0.5% resolution) will be issued. Upon request, the logging is performed by the printer.

2 Operating as a transient
Its full potential can only develop the system when it is operated as a transient.
The sampling time can be set from 30 microseconds up to any number of hours, days, or weeks. This sieve is the system for the collection and processing of short-term operations (single, fleeting signals) such. As shock processes, spikes or acoustic events and Langzeitmeßaufgaben such. As temperature gradients, strains and meteorological processes.

Only the outstanding events are stored on request for long-term operations and uninteresting, stationary regions not covered (eg. As shocks. Traffic noise, etc.).
The measured data are in an 8K deep memory, which is part of the MC · 12 detained. In this case, the total memory can be reserved for a task. However, the memory can also be found in up to 30 memory blocks divided by 256 bytes each, so that max. Allow 30 different waveforms next to each store.

To select particularly interested in the parts of the signal, the ratio of pre / post-history in eight levels can be selected. The Aussteuerunganzeige the measured values ​​by means of LCD bar.
The stored values ​​can be either applied directly to two analog outputs or arithmetical previously subjected to signal processing and analysis.
A measuring process was taken and stored by MC-12, the signal can be tapped at one of the analog outputs. The output voltage is ± 5 V to 100 ohms. A single signal or an arbitrarily long lasting measuring controls so that the Y • Input a recorder. The output speed is selectable and is suitably adapted to the setting speed of the recorder. The time axis is directly from the recorder or the computer – second analog output of the MC-12 to X input of the recorder – controlled.

Two different signals y1, y2 (eg pressure with temperature) was added, may either both signals as a function of time (y1 (t), y2 (t)) are plotted, or a signal is shown as a function of the other (y1 = y1 (y2)); Here are the outputs of the MC-12 are located on the xy-inputs of the external plotter.

(Adjustable repetition time) by a constant repetition of the signal sequence is a signal to the oscilloscope can be mapped to each of the analog outputs. An additional trigger output ensures a stable display. By this way any normal oscilloscope is digital oscilloscope for Spiecher, coupled with the other advantages of the MC-12th

The integrated printer / plotter documents the results of measurements and plots with a resolution of 0.2 mm with the available four ink colors are especially useful for playing various signals in conjunction with ten line types. The scaling of the appropriate coordinate systems is done automatically by the computer.

3 Application Examples
To give an idea of ​​the possibilities offered by the system described here, are below a grater typical applications together provided for which computing functions of the PC-1500 come to fruition. The collection can of course do not claim to be complete.

3.1 detection of oscillation process
The ringing of an electric
Resonant circuit is detected by the MC-12 (Figure “J).

The yt · Scaling was performed by the computer. The calculated values ​​from the computer and k f follow directly the time function of the damped oscillation
y (t) = A * exp (-ky) * sin (2PIft)
and the differential equation when a component size is known.
L · R · y + y + y / c = 0

3.2 Frequency Analysis
A periodic progress will be measured, stored and plotted by the MC-12. Subsequently, the frequency components of the process are calculated and printed and displayed as a bar graph (Figure 4).

3.3 reverberation time
In a space to be examined E is generated in a stationary sound field using a loudspeaker. After switching off the sound source, the time course of the decrease in sound level is measured on a logarithmic scale, stored and plotted according to the physical definitions by determining a regression line, the reverberation time T is determined (Figure 5).

3.4 Programmed signal analysis and processing
The essential advantage of the combination MC-12 / PC-1500 compared to other systems, the signal processing. From the simple logarithm to the Fourier analysis extends the range of possibilities. The user has the choice, in addition to the predefined processing variants using BASIC programs to transform the measurements according to his needs and evaluate. For complicated special solutions are custom software.

3.5 Digital control and regulation
Additional applications which are beyond the scope of traditional instruments, the system MC-12 offers in the field of control engineering. With four CMOS switching outputs (75 Ohms, 50 mA, +/- 10V), two relays and two analog voltage outputs (+/- 5 V) provides many possible keys.
From a simple timer display over two-point control to complicated PID control system is the system load no application is closed. Simple programs for control and regulation are included in the system of the MC-12.
With the help of detailed documentation, the user can create self-measurement and control applications. For this, 11 Kbytes program memory in the PC-1500 free for the user.

4 Dialog oriented user guidance
The Measurement and Control System MC-12 was designed so that the user does not have to deal with the function of additional controls. All functions of the MC-12 can be controlled via the alphanumeric keypad in dialogue with the computer. Operator errors are reduced to a minimum. Incorrect entries complained about the program itself. Once made settings can be saved and recalled when needed. This reliable reproducibility of test results is ensured. An additional check of the measurement parameters are documented on the printer.

Sharp PC-1500 serial 100xxxxY one of the first ?

Just after Christmas my friend CGH was at home for a “PC-1500 day”.
We have talked, tinkered and exchanged some machines.
I’m proud to present you this one : the oldest PC-1500 i know !
(Except his one with a lower serial number)

Externally there is no change, it’s a PC-1500.
PC-1500-A01-1001_003 PC-1500-A01-1001_002

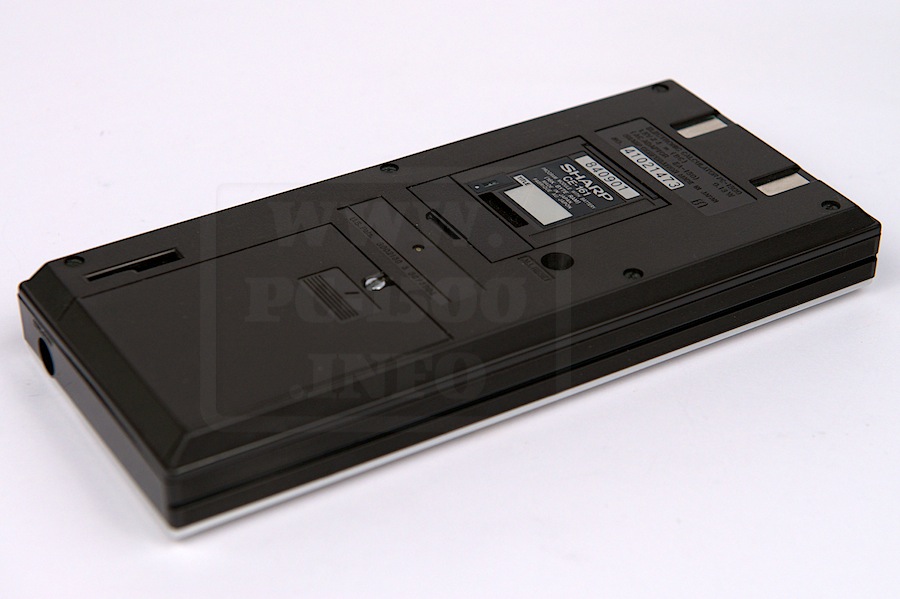

And on the back the only difference is the serial number :

But let’s opening the machine :
It’s strapped like a A01 ROM. Uh… these straps are white ! The first time i see one like this.

We can see on the SC613128 IC that it’s a A01 ROM.
The biggest white strap is mine, to repair a memory access problem.
Do you see the diodes on straps ? First time too…

Ok, more ?
The display board version is F2025, the oldest i know.

And the mode exciting, the CPU board !
There is no board revision !!!

If some of you have similar PC-1500, please, contact me to compare boards versions. 😉
And if you don’t have… this is a new quest !

BMC : The MC-12 (Part I)

This is MC-12A’s little brother in size and expandability.
It’s more compact and feel more robust.

And it can be stored and used in the CE-150 case

As you can see it’s not designed to be used without the CE-150. The main I/O are present.
BMC_MC-12_004 BMC_MC-12_005
BMC_MC-12_006 BMC_MC-12_007

But there is no other I/O connectors except power ones.

No V24 or digital I/O expansion port.

Next time we will open the case 😉

BMC : The MC-12A (Part III)

Let’s go for the technical view.

You can first download this advert in german language :
Download advert

Data acquisition unit combined with BASIC pocket computer
• Comfortable operating system, so easy to program
• Standard programs for numerous applications
• Manufacturer support for new special programs
• Universally applicable (network and battery)
• Simultaneous data acquisition and conversion on 5 channels
• Multiple data processing and analysis
• Sturdy case with integrated system components (6.5 kg)
• Steel box or Standard 19″ case for stationary use
• Extremely cost-effective overall system

Digital Multimeter
Data recorder
Transient recorder
Functions generator
Data analyzer
Regulation / control unit
5 input channels
2 analog outputs
4 CMOS switch
2 output relays
24 pol. l / O port
V.24 interface
LCD display
Printer / Plotter
8 KB of internal RAM
32KB (max) prog
360KB tape

BMC : The MC-12A (Part II)

The BMC’s ROM is copyrighted RVS, Rasso Von Schlichtegroll !
This is a very good surprise, isn’t it ?

Then we have a very nice software to drive the BMC hardware.
The system brings us these new instructions :
MC-12A Basic instructions and codes

INIT (E390)SWITCH (E380)
Do you have the user manual ? This would help me a lot 😉

The last two (POSTLOAD, RVSLOAD) have special functions.
RVSLOAD loads a sample program originally stored in the ROM :
(Thanks to my new tools for the CE-158 with syntax highlighter)

But if you use POSTLOAD the program is bigger !
Download this program : MC-12A_Forth_Full.TXT

As a big bonus, here is the user manual for the FORTH language :
Download this manual : BMC_MC-12_Forth.pdf

Next time we will discover the MC-12A technical side.
This will be a little boring but necessary.

BMC : The MC-12A (PartI)

The MC-12A, the most advanced acquisition tool.
As you can see, it fits perfectly with the PC-1500/CE-150 system.

What can this do ?
– Digital Multimeter -5V to +5V
– Data logger
– Transient
– Fonctions generator
– Data analyzer
– Regulation/Control unit

How can it communicate ?
– 5 input channels
– 2 analog outputs
– 4 CMOS switch
– 2 output relays
– 24 pol. l / O port
– V.24 interface
– 60 pins connector to PC-1500 or CE-150

It’s a strong tool, isn’t it ? It’s as wide as the CE-150.
BMC_MC-12A_004 BMC_MC-12A_005

The power supply adapter EA-150 is plugged directly in the MC-12A and is transferred to the CE-150 with a grey cable.
A very nice idea !

Removing the CE-150 is not really easy. You have to remove 2 screws and move the printer to separate it.
BMC_MC-12A_008 BMC_MC-12A_007

DO you see the white tube on the metal plate ? It goes directly to a hole under the CE-150.

Here is the CE-150 connector :

Now let’s opening the MC-12A and see inside.
There are some options installed. A really good thing ? All the ICs are on sockets ! Easy repairing…
There is a place on the left with corroded marks. It’s the battery.
The whole system can be used out of 110/220v ! You can take it and go on site.

Let’s open a bit more… there is a RAM and a ROM. Two sockets are unused for future extension.

The ROM IC will give you a really good surprise… stay tuned…

BMC Dr. SCHETTER : industrial acquisition interfaces

Finding industrial peripherals for the PC-1500 is not really easy now.
But our german friends were the more active around this pocket computer.
I start here a short story about nice items…


This company is BMC Dr. Schetter and build acquisition/control tools for more than 30 years.
I tried manny times to get some help from them but the only answer was… their newsletter.
This company is like a wall and did not answer any of my e-mail.
All informations in my articles are provided without their help ! But it’s not too late…

One of their first product was the MC-12A and was designed to be driven by our favorite pocket computer. It was the most advanced of the catalog.

In fact there was 3 different interfaces :
MC-12A : Full system with batteries and the R.V.S. Forth language on EPROM
MC-12 : A small system without batteries but it can stay in the CE-150 case.
MC-10 : The very small system to connect directly to the PC-1500. (I’m looking for this one ! Do you have one for me ?)

Everyone having user manuals or other informations that may help can contact me.
